Create Workflows Using Templates

A workflow is a logical sequence of basic building blocks called nodes. A template is a workflow blueprint made by TotalCloud. It can either be deployed directly or customised by you in The Editor.

.

  1. Login to the TotalCloud WebApp

.

  1. Ensure that your AWS credentials have been validated.
If not, you can use Role or Key to do so

.

  1. After logging in, click on Templates. This shows the list of published templates.

.

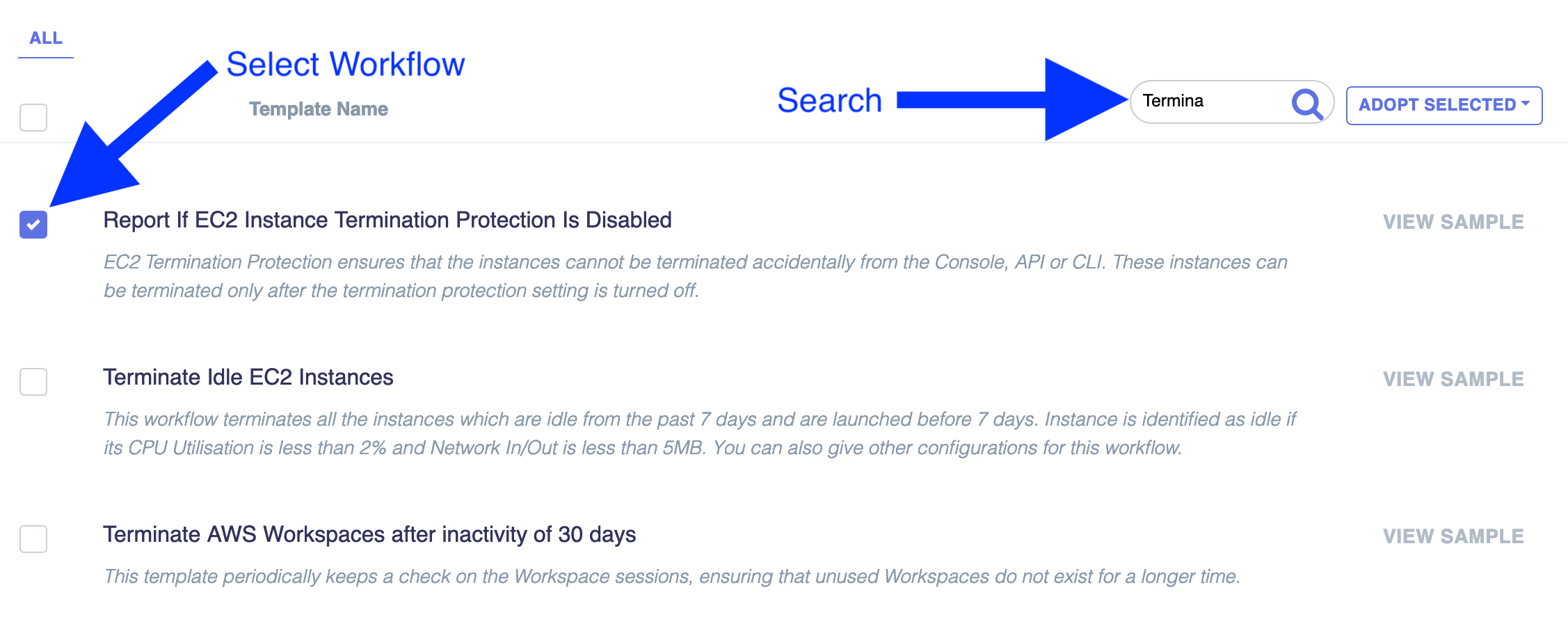

  1. Search for the desired workflow, and select the checkbox on the left.

.

  1. Click Adopt Selected.
    1. Adopt Directly is used to deploy the workflow without making any changes.
    2. Customise is used to make changes to the workflow before deploying or running.

.

Adopt Directly

.

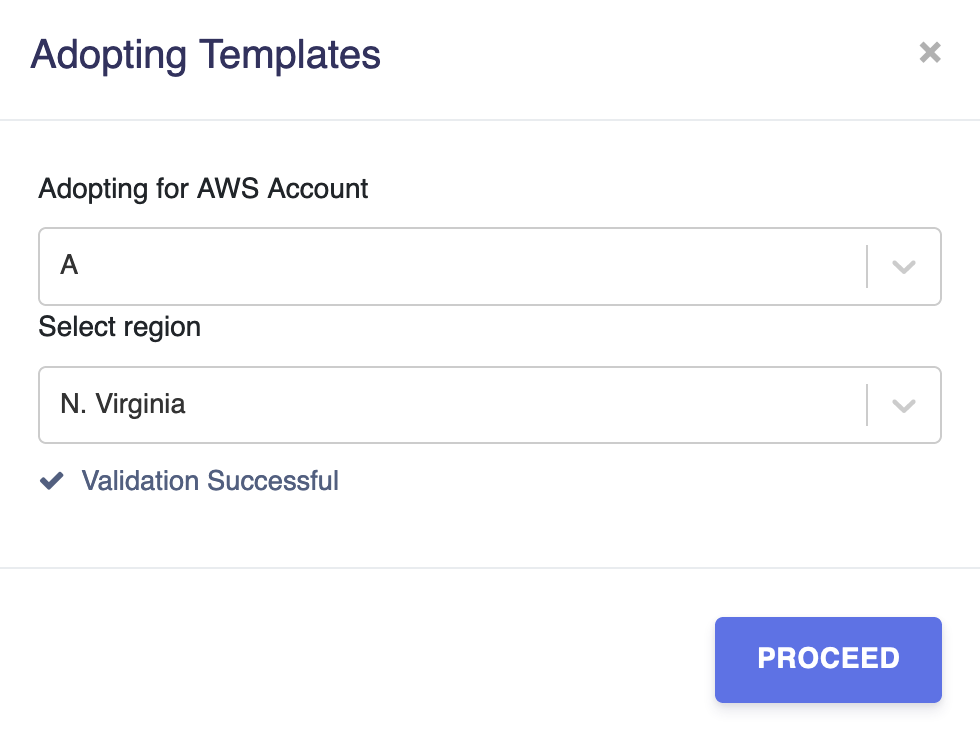

  1. You will be asked to select the account to be used and the region to deploy the workflow in. You will receive a Validation Successful message. Click Proceed to deploy the workflow.

.

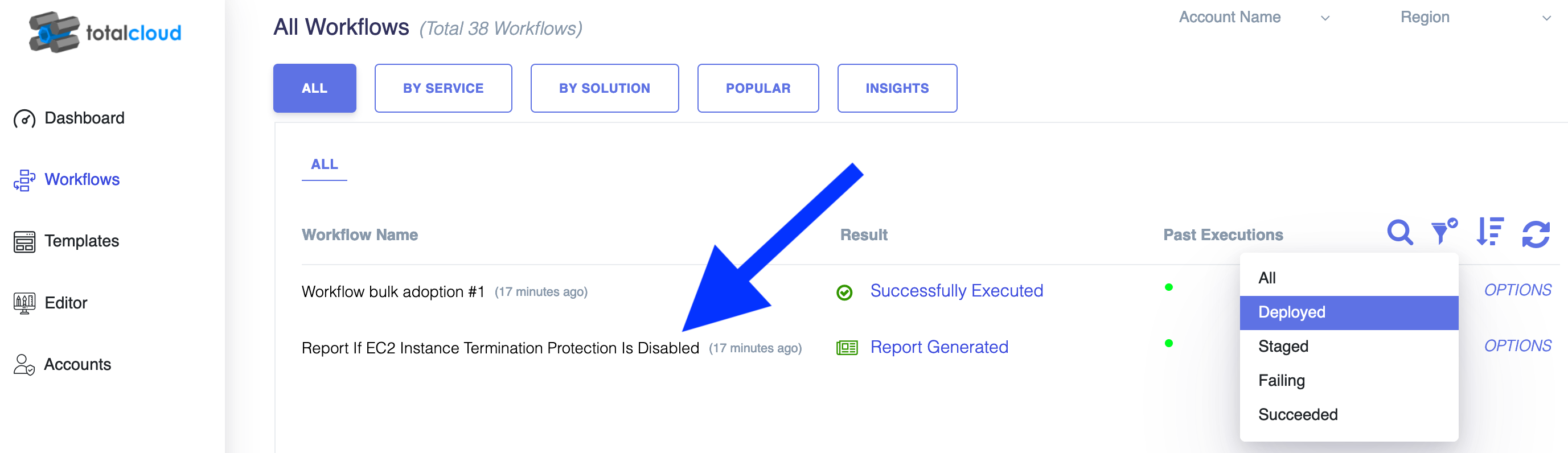

  1. The workflow can now be seen under the Deployed category in the Workflows page.

.

Customise

.

  1. Choosing Customise will open the workflow in the Editor, allowing you to make changes to it.

.

  1. After making changes, you can choose to Save, Run or Deploy the workflow. More on those here.
