What is a workflow trigger node?

A workflow trigger node triggers one workflow as a result of another. So a workflow is triggered based on the needs of the first workflow.

This can be understood with an example:

Goal

Our goal is to copy an RDS DB cluster from a single availability zone to multi availability zone to increase reliability and then convert it back to a single availability zone for frugal usage.

Nodes required

For the first workflow

  • Trigger
  • Resource
  • Filter
  • Action
  • Report
  • Workflow trigger

For the 2nd workflow

  • Trigger
  • Resource
  • Action
  • Report

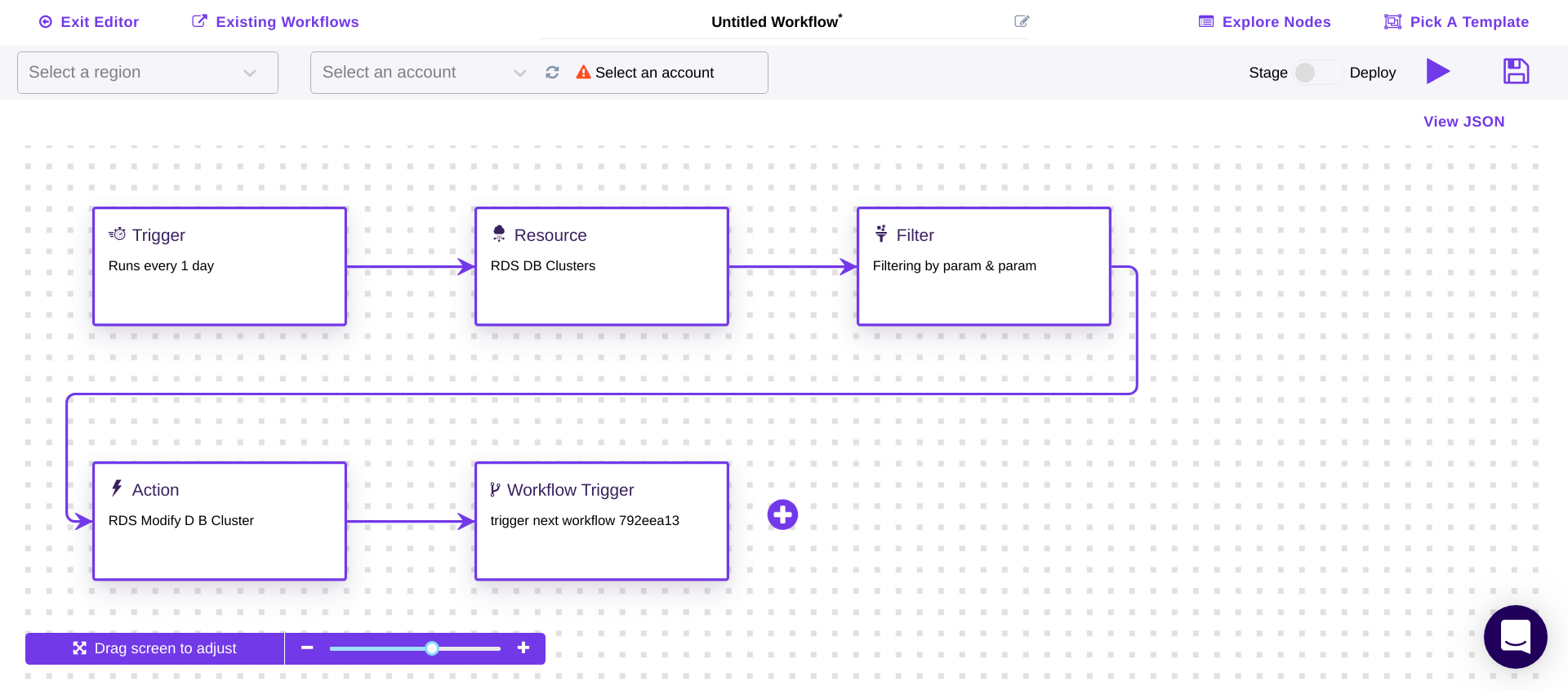

This is how the workflow will look:

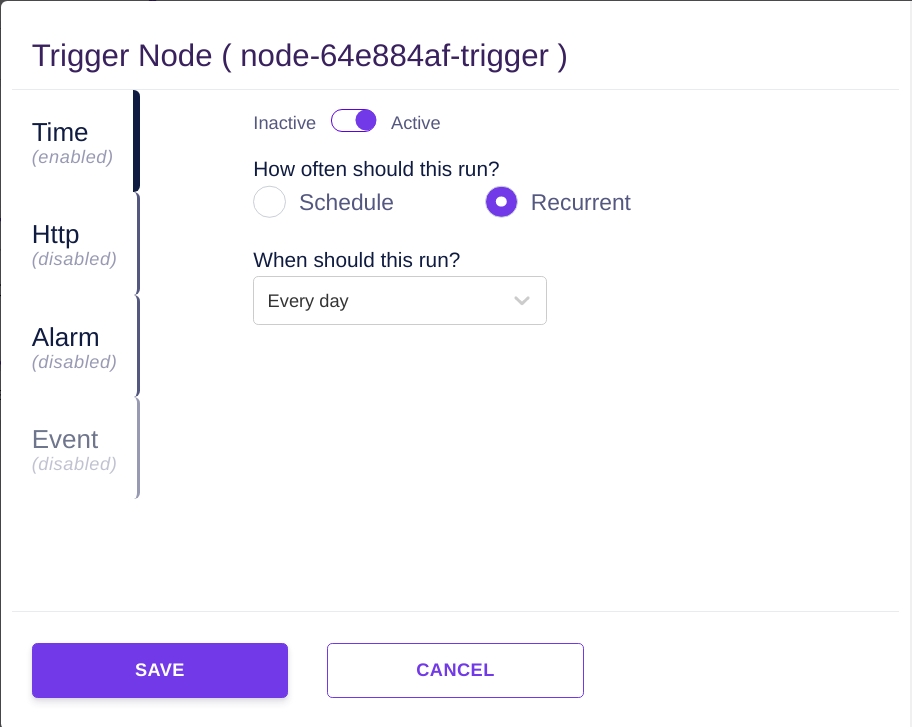

Trigger node

The trigger is set to activate this workflow everyday (this may vary for each use-case).

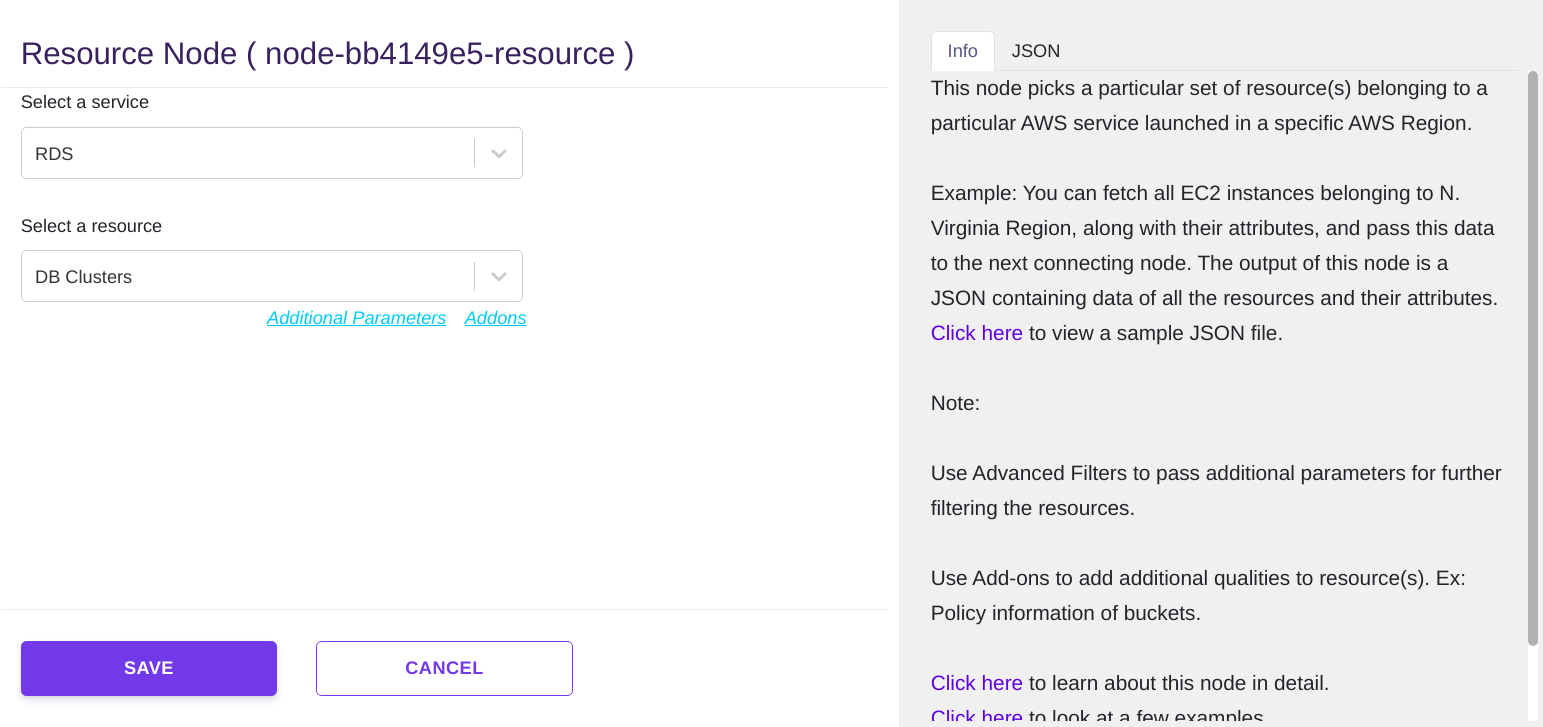

Resource node

In the resource node we pick the AWS resource on which we want to work. We have chosen RDS clusters.

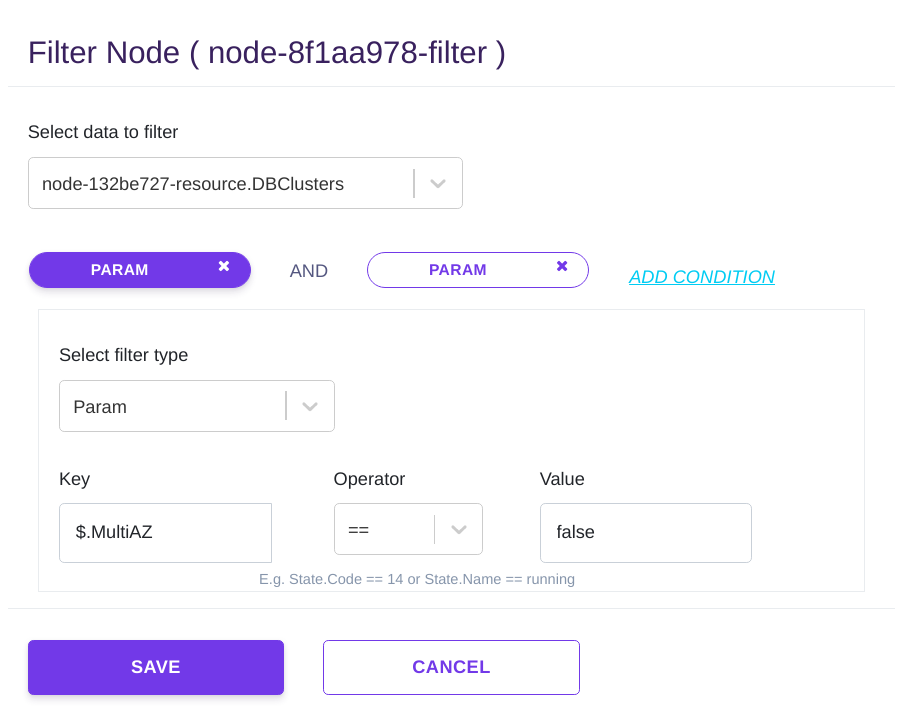

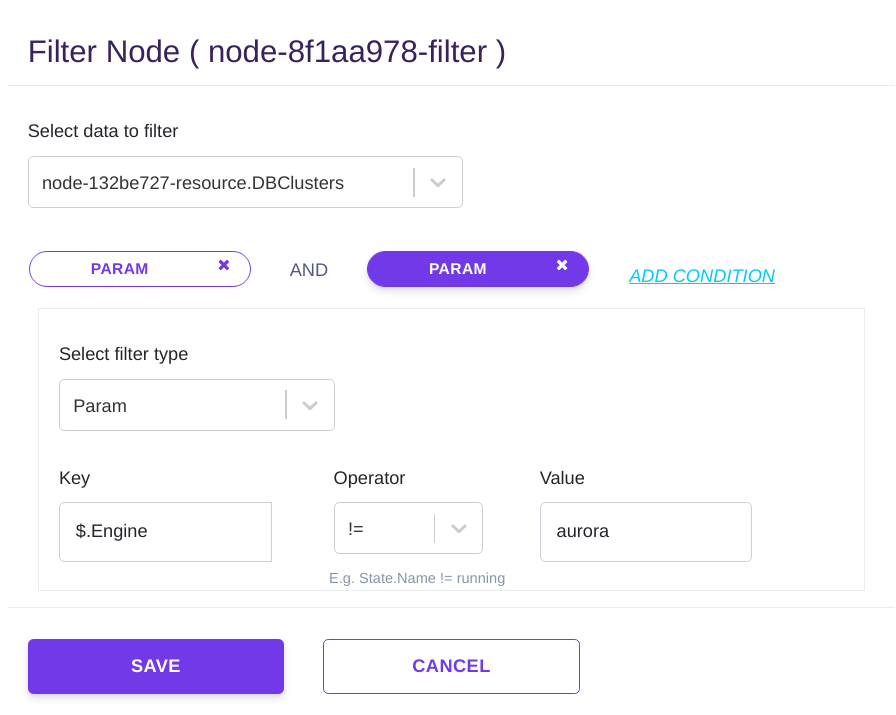

Filter node

In the filter node there are two parameters on the basis of which we separate the RDS clusters - the clusters that are in a single availability zone and the nodes which don't have an aurora engine.

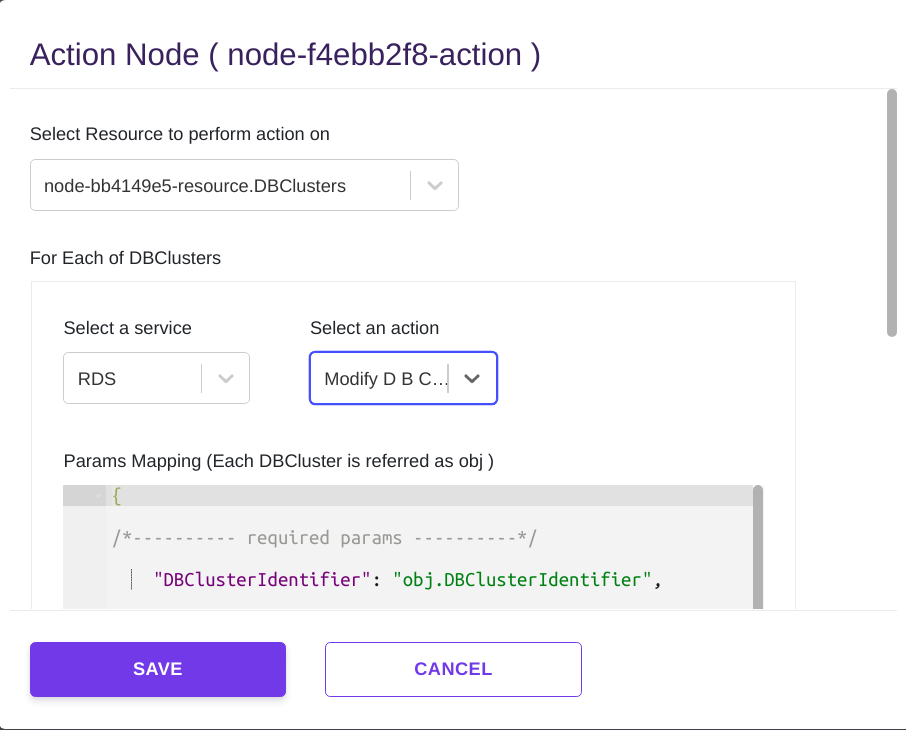

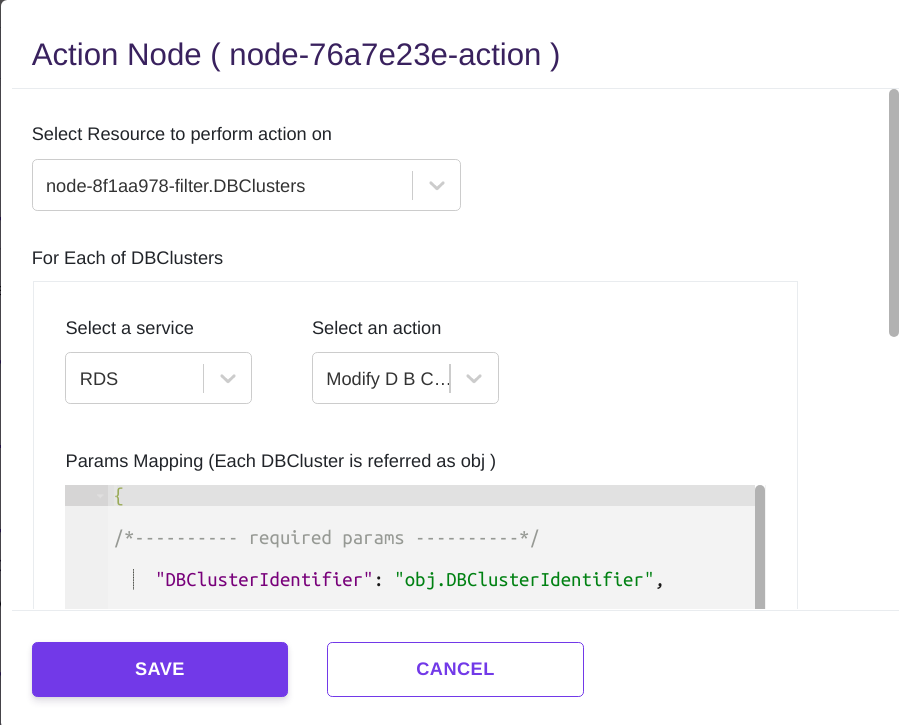

Action node

The Action node is performing the action of converting the RDS cluster from single availability zone to multi-availability zone.

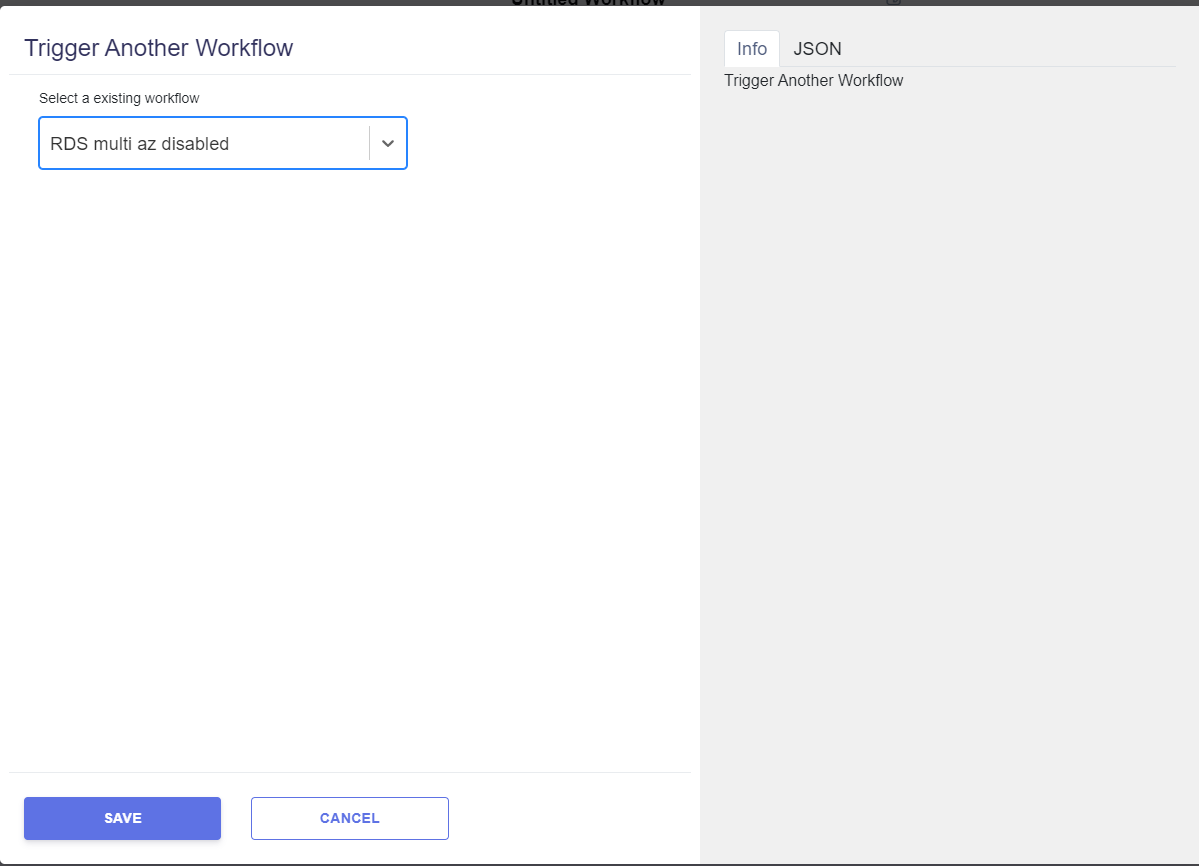

Workflow Trigger

After the RDS clusters are converted from single availability zone to multi availability zone we will convert them back to single availability zone for frugal utilisation of our resource. This can be done with an existing workflow which we trigger through this node. The node has a drop down of all the workflows that you have in your account, and you can choose the next workflow to be triggered.

Triggered workflow

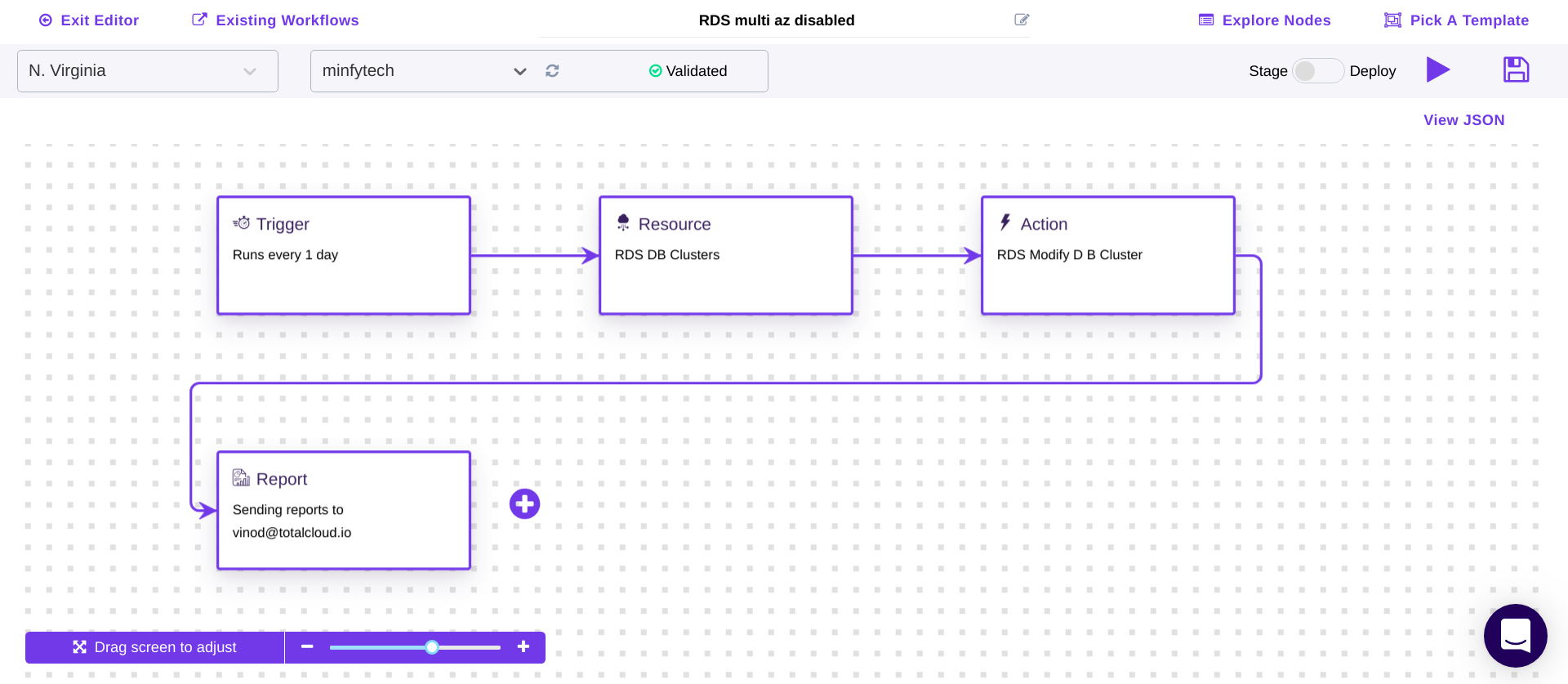

The second workflow that is being triggered looks like this:

Let's look at all the nodes:

Trigger node

The trigger node runs everyday (this may vary for different use cases)

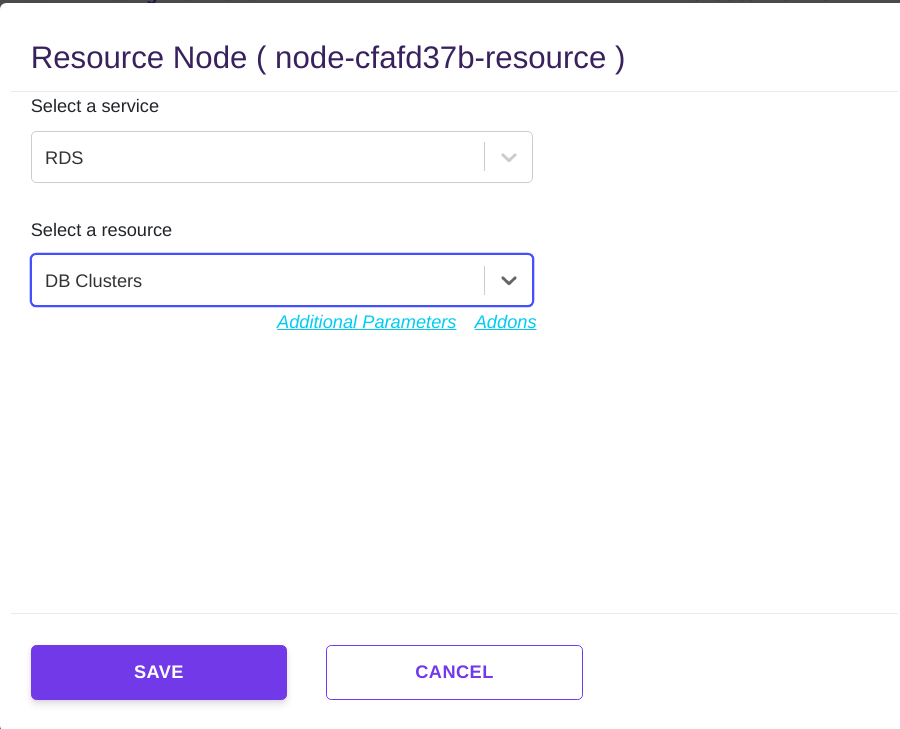

Resource node

In the resource node we pick the AWS resource on which we want to work - RDS instances in this case.

Action node

The Action node converts the RDS instance from multi-availability zone to single availability zone.

Report node

This node send a report of the workflow to the desired E-mail ID or Slack.
