What is User Approval Node?

You can add this node in between two nodes whenever you have the organizational obligation to take approval from concerned stakeholders or self before taking any action on an AWS resource. When the stakeholder approves an email, the Workflow will automatically detect the command and run the next node accordingly.

Working with User Approval Nodes

The User Approval node is defined in the Workflow as follows:

  1. Go to the workflow editor, when you start a new workflow or select a new template.
  2. If you start a new workflow:
    1. Click the User Approval icon from the Tools section.
    2. Double click the User Approval node to access the parameters input window.
  3. If you select an existing template:
    1. Double click the User Approval node in the workflow to access the parameters input window.

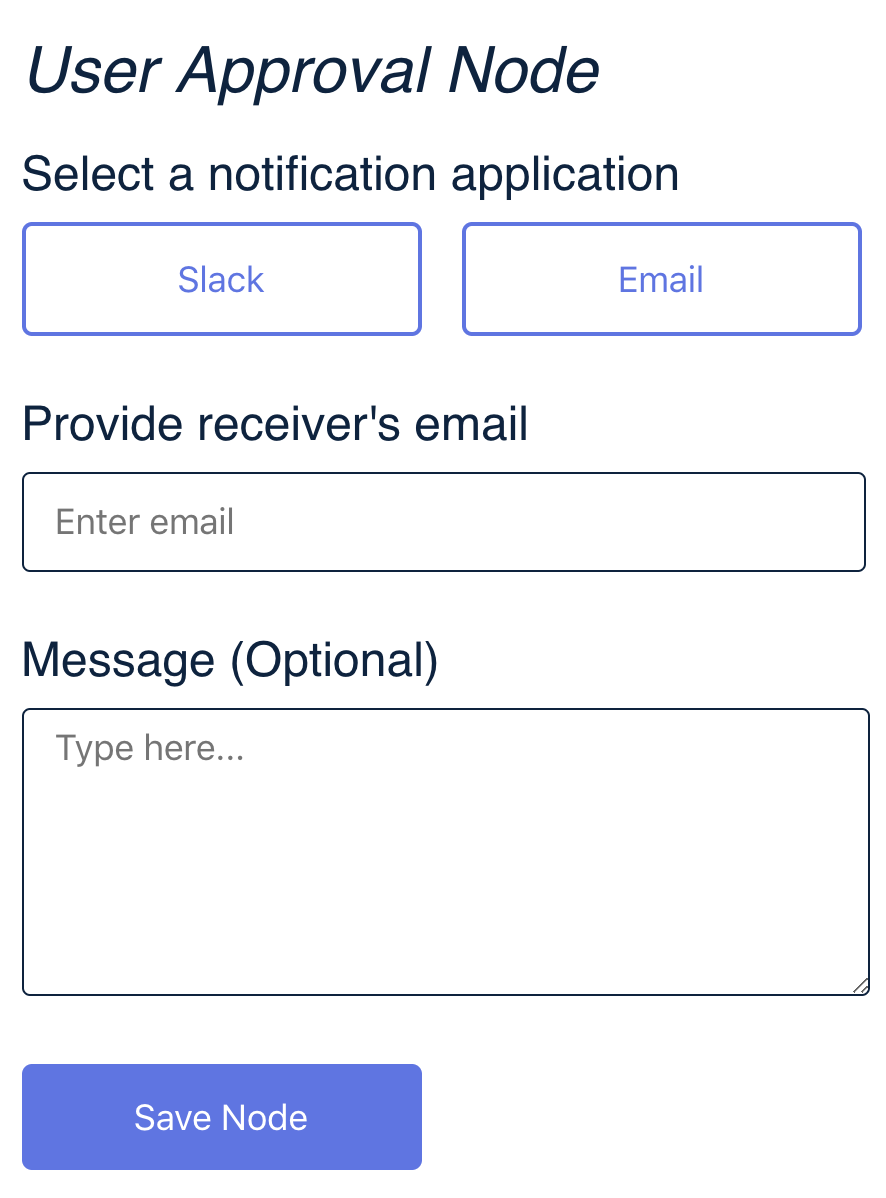

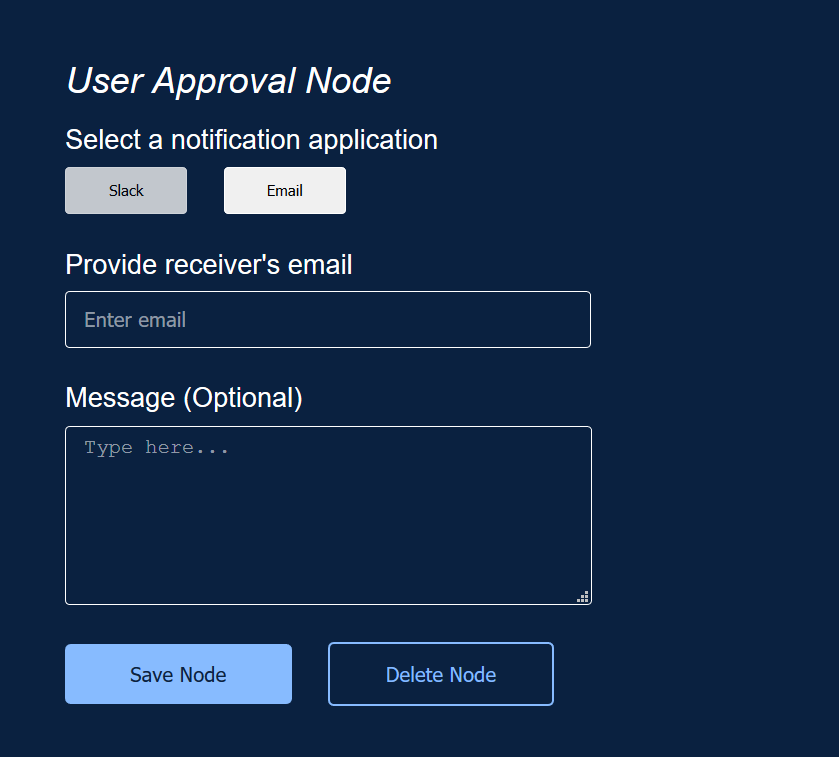

  1. Enter the approver's (yourself or a stakeholder or approver) email ID and the message that needs to be sent automatically.
  2. Click Save Node.
Note that an approval request expires after 24 hours.

What Happens in this Node?

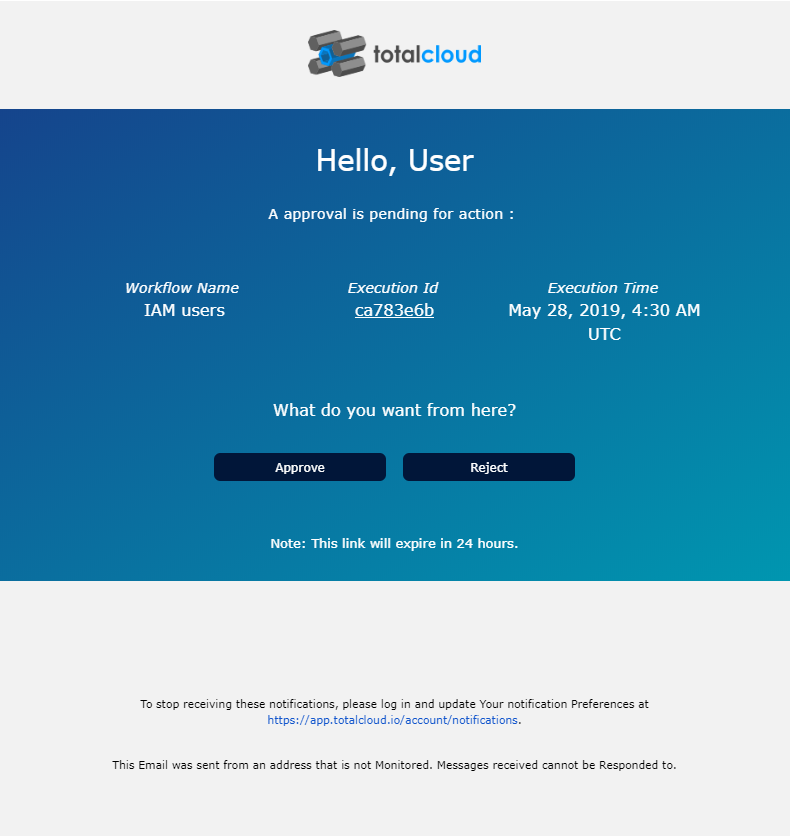

When you use this node, an approval email will be sent automatically as per the conditions set by you. Here's how a sample email looks like:

When the stakeholder or the concerned approver of the task clicks Approve or Reject from the email, the Workflow will automatically detect the command and run the next node accordingly.

If the stakeholder clicks Reject, the workflow stops execution of the next node.

Usage Examples

1. Use this node to ask for approval before stopping instances that you fetched from previous node. Only upon receiving the Approve command from this node, the instances will stop in the succeeding Action node.

2. Use this node to ask for approval to close open ports that you fetch from the previous node. Only upon receiving Approve command from this node, the ports will close in the succeeding Action node.

3. Use this node to ask for approval to reduce the cluster size of ECS. Only upon receiving Approve command from this node, the ECS cluster size will reduce in the succeeding Action node.
